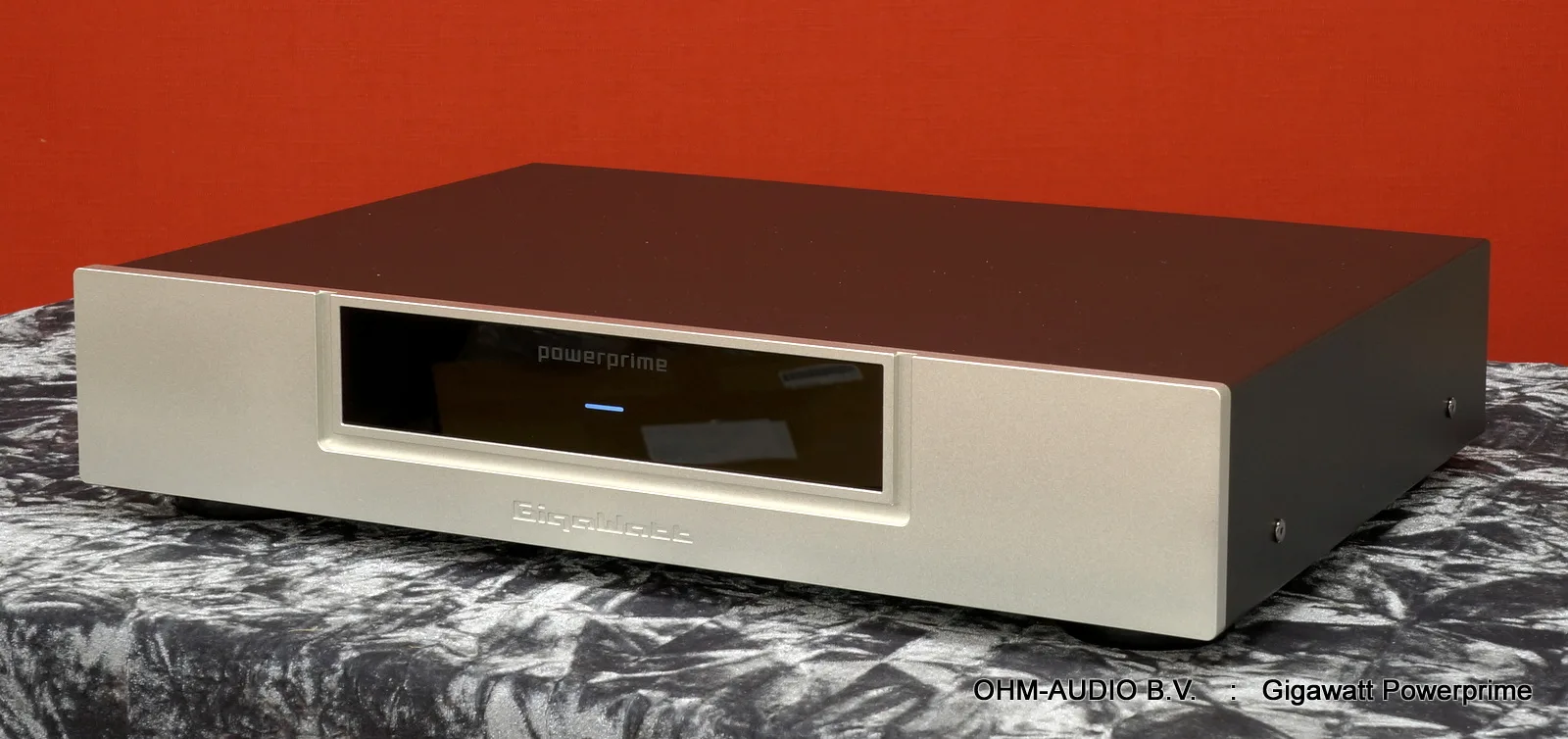

Gigawatt PowerPrime, Quality Line Powerconditioner, Including Gigawatt Powercord

Gigawatt PowerPrime Including Gigawatt Powercord

Retail price Including Gigawatt PowerSync Plus Powercord : € 3.500,00
Available with other Gigawatt powercords for an additional charge

EN.

General : Gigawatt Powerprime is the most affordable model of the Gigawatt powerconditioners. The Gigawatt Powerprime offers effective protection against overvoltage and simultaneously delivers clean, well-filtered power to your devices. This makes the Gigawatt Powerprime an essential component of any audio system.

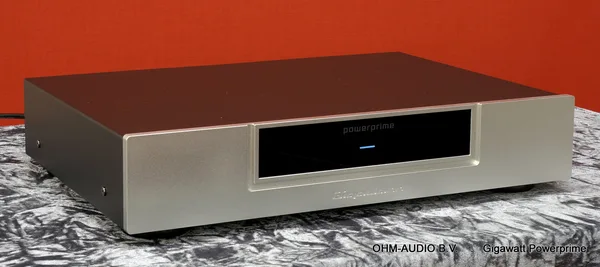

Construction : All elements of the Gigawatt Powerprime are mounted in a new, rigid steel / aluminium chassis with a modular structure. The housing stands on anti-vibration feet, which ensure that the Gigawatt Powerprime is not affected by vibrations and resonances. The new front panel design is made from a thick piece of aerospace aluminium, the surface of which is anodised in two colour variants after precise machining: black or silver.

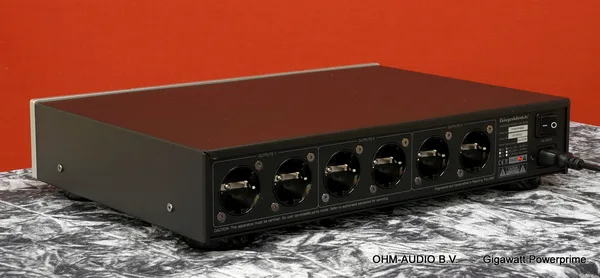

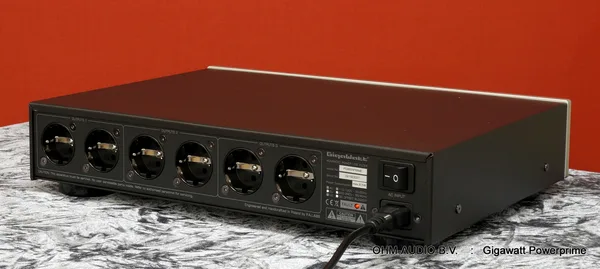

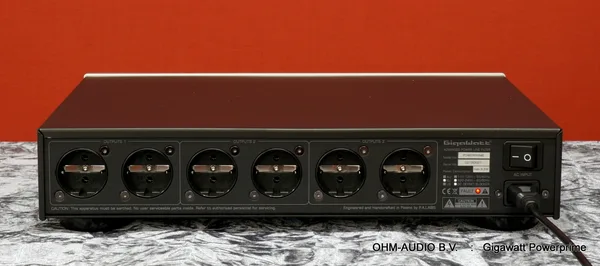

Connections : The Gigawatt Powerprime also indicates with an LED light when it is not phase-correct or connected without grounding. The Gigawatt Powerprime is equipped with six outlets, distributed over 3 zones, the connectors of which are silver-plated without the use of intermediate metals such as a copper or nickel layer, which can cause harmful series resistance and thus reduce voltage. A strong, stable connection, larger contact surface and a thick layer of silver guarantee perfect contact with the plug pins. Furthermore, the contact sockets are cryogenically treated and demagnetised.

Protection : The Gigawatt Powerprime has no traditional safety elements, such as fuses, which slow down the free flow of current and have a negative effect on sound. Overvoltage protection is achieved through a protection block that is integrated into the filter, equipped with plasma spark gaps and a new generation of UltraMOV varistors. This method of protection hardly restricts the flow of current and still provides good protection for both the Gigawatt Powerprime itself and the equipment connected to the Gigawatt.

Internal Wiring : All electronic components of the filter are mounted with silver solder on PCBs with extremely wide conductive traces made of pure copper (total thickness of conductive layers is as much as 70 micrometers). Due to the short connections and a very large cross-section of the signal paths, the contact resistance is reduced and the current capacity of the entire filter is significantly increased. The internal wiring is based on Gigawatt powercords made of OHFC copper with a cross-section of 4mm2. Also included are large, pure distribution bars. The large cross-section of each distribution rail (30QMM) and the high wiring conductivity guarantee even and stable power distribution to each output connection - regardless of the load on the other Powerprime outputs.

Buffers : The device uses a buffer system with a Gigawatt Audio Grade compensation battery, which increases power efficiency at non-linear loads, such as power amplifiers, and reduces the difference between input and output power of the powerconditioner. This enables almost unlimited impulse capabilities, unheard of in other similar passive conditioners and unattainable by active power regulators.

The Gigawatt Powerprime is the ideal powerconditioner at a very competitive price and is in stock as standard at Ohm-Audio B.V.

Specifications :

Brand : Gigawatt Poland

Model : PowerPrime
Type : Passive Powerconditioner

Power Inputs : 1 x C15 IEC input

Power Outputs : 6

Output Zones : 3
Maximum output power : 3680 Watt

Finish : Black or Silver
